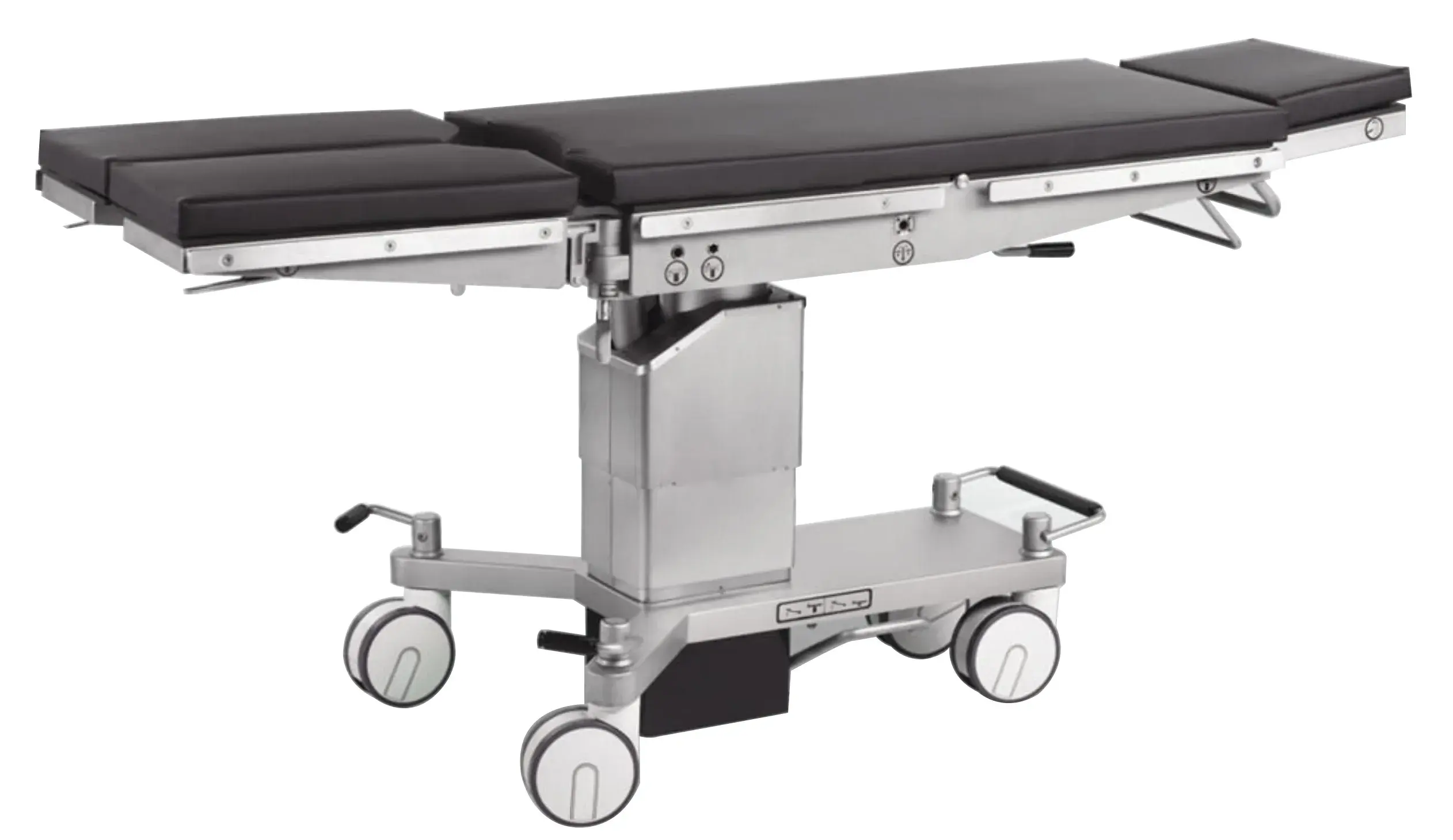

Orthopedic Electric Hydraulic Surgical Operating Table

Short Description:


Product Detail

Product Tags

Overview
Essential details
Place of Origin:
Shanghai, China
Brand Name:
Flower Medical
Model Number:
ET400
Power Source:
Electric
Warranty:
1 Year
After-sale Service:
Online technical support
Material:
Metal, Steel
Shelf Life:
3 years
Quality Certification:
ce
Instrument classification:
Class II
Safety standard:
EN 149 -2001+A1-2009
Name:
Electric Hydraulic Operating Table
Length:
2000mm
Width:
500mm
Adjustable range of height:
670~970mm
Reversed Trendelenburg/Trendelenburg:
+25/-30
Lateral Tilt(Left/Right):
+20/-20
Head rest(up/down):
+60/-70
Foot Plate(up/down&horizontal position):
+15/-90
Leg board folding downward/outward angle:
+70/-30
External Kidney bridge elevation:
120mm

Name
Electric Hydraulic Operating Table
Model
ET400
Length
2000mm
Width
500mm
Adjustable range of height
670~970mm
Reversed Trendelenburg/Trendelenburg
+25˚/-30˚
Lateral Tilt(Left/Right)
+20˚/-20˚
Head rest(up/down)
+60˚/-70˚
Back board folding upward/downward angle
+70˚/-30˚
Leg board folding downward/outward angle
+15°/-90°/90°
External Kidney bridge elevation
120mm
Power supply
220V,50Hz/110V,60Hz
Volume
1405×725×885mm
Supply Operations
Suitable for surgical operations for the head,neck,thorax,perineum,abdomen,extremities; gynaecology and obstetrics,urology
department, Ent surgery
Send Enquiry Here ~
Lucy(Export Manager) : Mobile/WhatsApp/WeChat:+86 15039025582

Table length and width: ≥2000mm/≥500mm Minimum height of table: ≤670mm

Range of table top: ≥300mm
Tilt back/front of the table: ≥30°/≥25°
Tilt left and right: ≥20°/≥20°
Accessories:
Anesthesia Screen:1 pieces
Shoulder support:2 pieces
Armrest:2 pieces
Support frame:2 pieces
Leg rest:2 pieces
Mattress:1 set
Long slider: 2 pieces
Slider: 7 pieces
Foot board: 2 pieces
Oil can (with oil): 1 piece
Waist bridge handle: 1 piece
Size
1400*780*930 mm

Weight

G.W.:230 kg

Package Details

Wooden case
