ICU pendants medical Pendant system

Short Description:

Send email to us

Product Detail

Product Tags

Overview

Essential details

Place of Origin:: Shanghai, China

Brand Name:: Flower Medical

Model Number:: PF-70

Warranty:: 1 Year

After-sale Service:: Online technical support

Instrument classification:: Class I

Type:: Medical Gas Equipments, Medical Gas Equipments

Item:

PF-70

Single-cantilever:

1000mm+800mm, 150kg

Tubular extension arm folders:

240x240mm

2#tray customized:

690x400mm

Universal socket:

Customized

Gas Outlet:

Customized

Network socket:

RJ45

Reading lamps and light:

Optional

Certificates:

CE ISO 13485

Product Description

Specification

Double-cantilever	1000mm+800mm 150kg
Folder tubular extension arm	YES
Infusion adjustable height frame	YES
Cable tracheal folder	YES

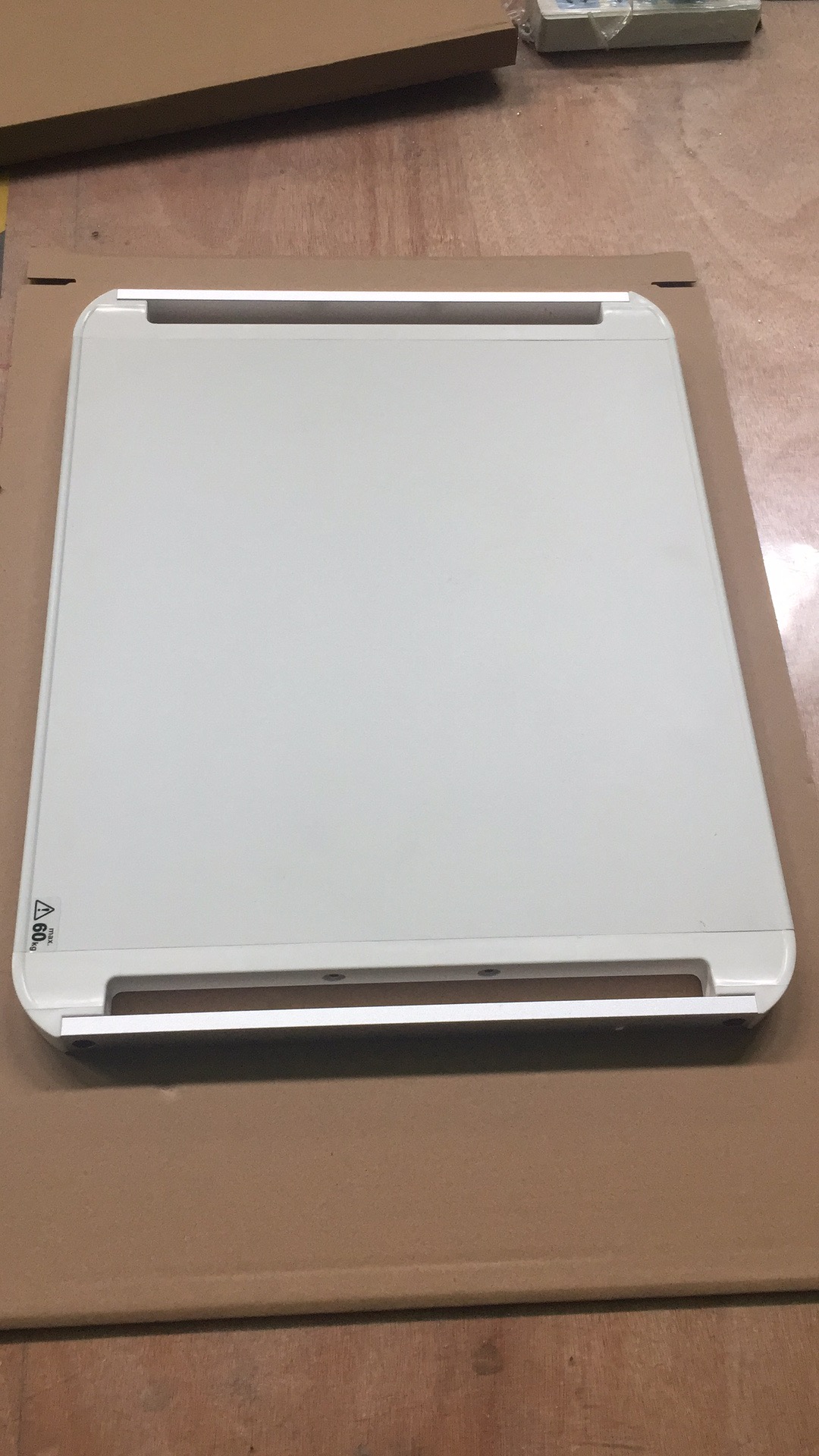

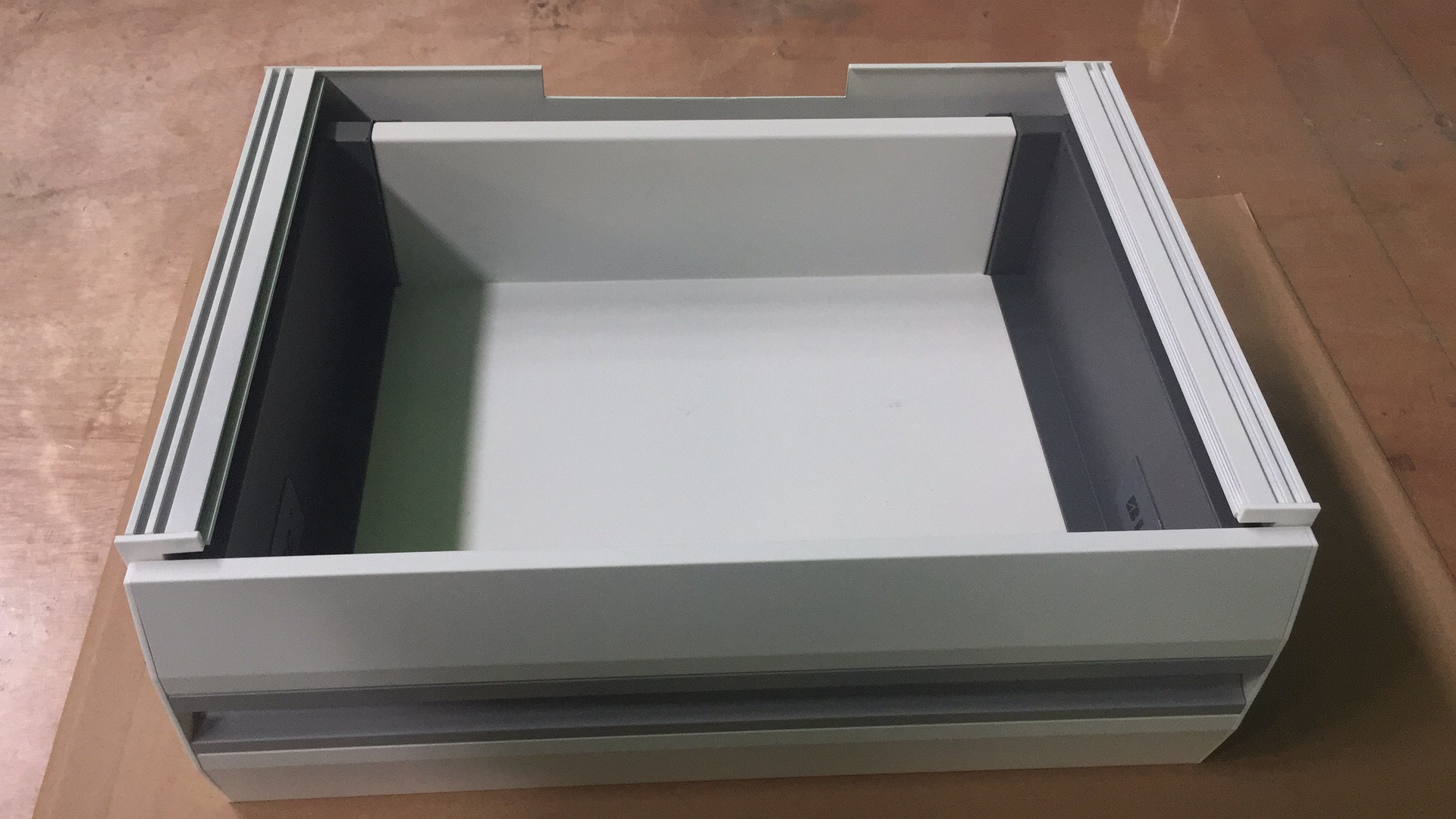

Drawer	2#Tray: 400*510mm)
Stainless steel basket	Optional
Gas Outlet	Can do Customized (O2×1, Air5×1, Vac×1)
Network communication interface socket	RJ45
Universal socket	can do Customized

Packing & Delivery

Other types

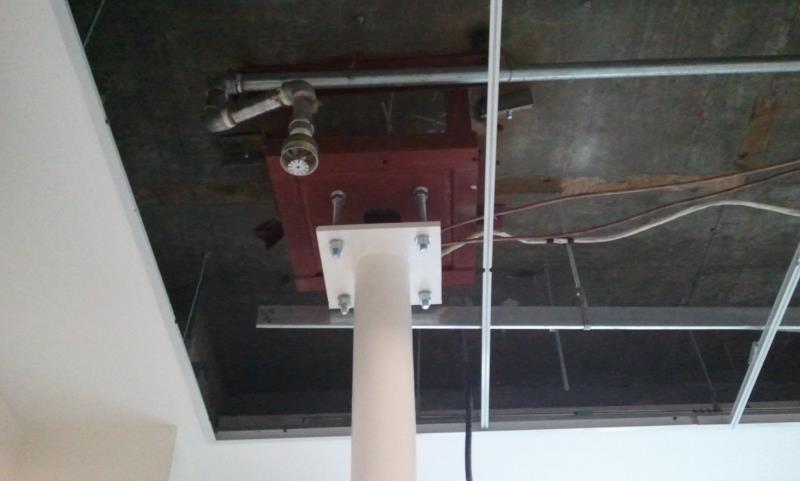

The ICU/CCU Equipment Management Pendant (EMP) is designed to be ceiling-mounted ensuring best possible ergonomics. This design provides much improved patient access over conventional mounting systems. It reduces the problems of congestion and possible hazards associated with trailing hoses and cables.
