Hospital equipment electric operating table surgical medical supplies operation chair

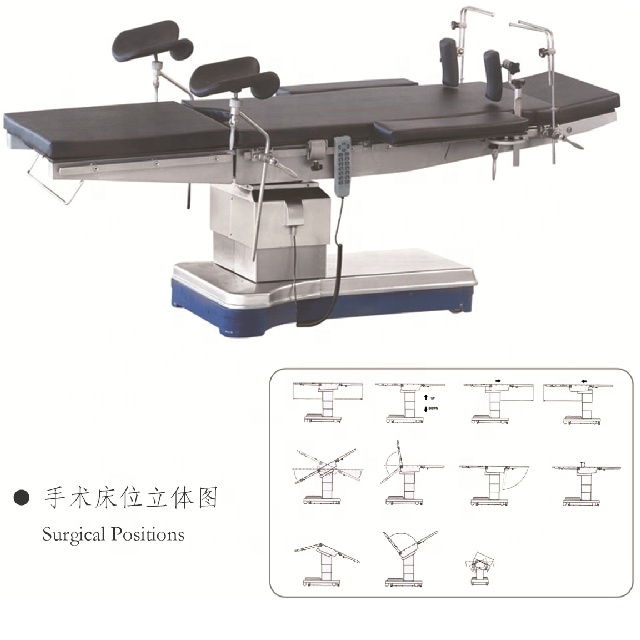

Introduction of JT-2A Hydraulic Operating Table:

JT-2A Electric multi-function operating Table is a comprehensive operation for chest, abdominal surgery, brain surgery,
ophthalmology, otolaryngology, gynecology, urology, orthopedic, etc.
1,The main position adjustment, such as the elevation of the table, the forward and backward, the left and right sides, and the
back plate, are carried out by the key operation and the electric push rod transmission.
2,The platform is made of high-strength plastic sheets, and mattresses are made of polyurethane foam.
3,The leg plate can be disassembled, manually rotate outward, fold, adjust conveniently, very convenient urology operation.
4,The hand-held manipulator adopts 24V dc voltage, which is simple and safe.

Technical Parameters :

Model. JT-2A
Length. 1960mm
Width. 480mm
Adjuestable range of height. 690~930mm
Reversed Trendelenburg/Trendelenburg. +25°/-20°
Later Tilt(left/right). +18°/-18°
Head rest(up/down). +45°/-50°
Back Plate(up/down). +75°/-10°
Leg board floding downward/outward angle. 90°/90°
Longitudinal Sliding. 80mm
Load capacity. 180kg
