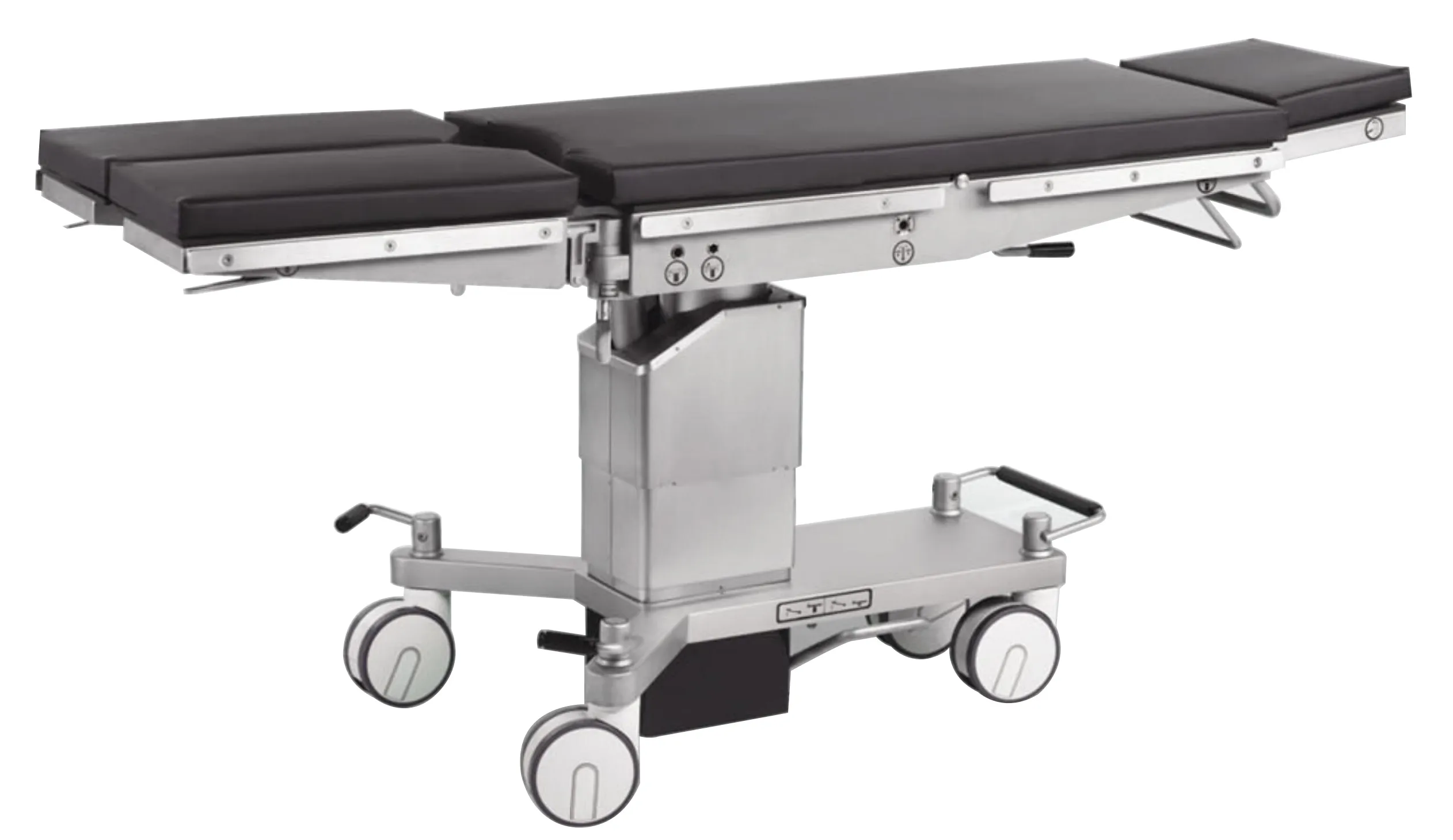

Flower-med Excellent Quality Electro Hydraulic with Manual Override Operation Table with Higher Load Capacity

Short Description:

Send email to us

Product Detail

Product Tags

Overview

Essential details

Place of Origin:: Shanghai, China

Brand Name:: Flower Medical

Model Number:: ET400

Power Source:: Electric

Warranty:: 1 Year

After-sale Service:: Online technical support

Material:: Metal, Steel

Shelf Life:: 3 years

Quality Certification:: ce

Instrument classification:: Class II

Safety standard:: EN 149 -2001+A1-2009

Name:

Electric Hydraulic Operating Table

Length:

2000mm

Width:

500mm

Adjustable range of height:

670~970mm

Reversed Trendelenburg/Trendelenburg:

+25/-30

Lateral Tilt(Left/Right):

+20/-20

Head rest(up/down):

+60/-70

Foot Plate(up/down&horizontal position):

+15/-90

Leg board folding downward/outward angle:

+70/-30

External Kidney bridge elevation:

120mm

Name			Electric Hydraulic Operating Table
Model			ET400
Length			2000mm
Width			500mm
Adjustable range of height			670~970mm
Reversed Trendelenburg/Trendelenburg			+25˚/-30˚
Lateral Tilt(Left/Right)			+20˚/-20˚
Head rest(up/down)			+60˚/-70˚
Back board folding upward/downward angle			+70˚/-30˚
Leg board folding downward/outward angle			+15°/-90°/90°
External Kidney bridge elevation			120mm
Power supply			220V,50Hz/110V,60Hz
Volume			1405×725×885mm
Supply Operations			Suitable for surgical operations for the head,neck,thorax,perineum,abdomen,extremities; gynaecology and obstetrics,urology department, Ent surgery

Send Enquiry Here ~

Lucy(Export Manager) : Mobile/WhatsApp/WeChat:+86 15039025582

Table length and width: ≥2000mm/≥500mm Minimum height of table: ≤670mm

Range of table top: ≥300mm

Tilt back/front of the table: ≥30°/≥25°

Tilt left and right: ≥20°/≥20°

Accessories:

Anesthesia Screen：1 pieces

Shoulder support：2 pieces

Armrest：2 pieces

Support frame：2 pieces

Leg rest：2 pieces
Mattress：1 set

Long slider: 2 pieces

Slider: 7 pieces

Foot board: 2 pieces

Oil can (with oil): 1 piece

Waist bridge handle: 1 piece

Size	1400780930 mm

Weight	G.W.:230 kg

Package Details	Wooden case
