- Place of Origin:
-
Shanghai, China
- Brand Name:
-
Flower Medical
- Model Number:
-
FD-I
- Properties:
-
Neurosurgery Instruments
- Type:
-
Operation table, Multi-purpose operating surgical table
- Instrument classification:
-
Class II
- Product Name:
-
FD-I Medical device multi-purpose operating table for surgical
- Warranty:
-
1 year
- OEM:
-
Available
- Reversed Trendelenburg:
-
22°
- Trendelenburg:
-
22°
- Kidney Bridge Elevation:
-
120mm
- Supply:
-
AC 220±10% 50Hz
- Volume:
-
1405*725*885mm
- Sliding:
-
300mm
FD-I Medical device multi-purpose operating table for surgical
This type operating table is suitable for surgical operations of the head, neck, thorax, perineum, abdomen and extremities as well as for gynaecological, urology, ophthalmology and otorhinolary and brain surgery operations The leg panel can be dissembled and easy adjusted. The double skin table panel adopted the high strength transparent board, which can be used for X ray examination. All the movement of the table is controlled by electric drive pusher with safety and reliability.
Model | FD-I |
Length | 2000mm |
Max Height | 1000mm |
Width | 500mm |
Min Height | 750mm |
Reversed Trendelenburg | ≥22° |
Trendelenburg | ≥22° |
Lateral Tild | ≥15° |
Head Section Raised from the Horizontal | ≥45° |
Head Section Lowered from the Horizontal | ≥90° |
Back Section Raised from the Horizontal | ≥45° |
Back Section Lowered from the Horizontal | ≥15° |
Leg Section Lowered from the Horizontal | ≥90° |
Leg Section Opened | ≥90° |
Kidney Bridge Elevation | ≥120° |
Supply | AC 220±10% 50Hz |
Volume | 1405*725*885mm |
Standard Configuration:
>Body strap 1 pc
>Anesthesia screen 1 pc
>Shoulder support 1 pair
>Arm support 1 pair
>Waist support 1 pair
>Leg support 1 paip
Picture:

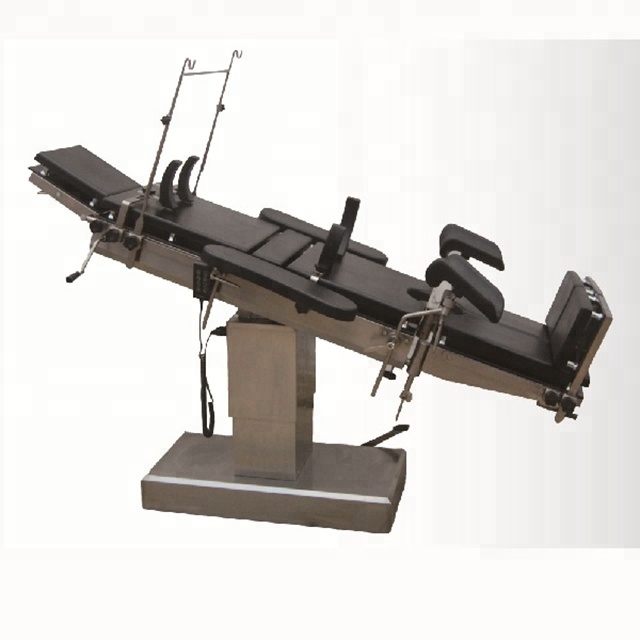

Multi-purpose operating surgical table
Other Models:
FD-I Medical device multi-purpose operating table for surgical are packed in wooden case.
Control from production process:
- We don’t send parts out for pre-treatment, all process would be supervised under inspection department.
- 7 stages pre-treatment meet international standard.
- Baking at high temperature after power coating to ensure the paint finish.
Control from inspection:
- Process inspections after cold working, acid washing, powder coating and assembling.
- Final inspection before loading in random checking.
- SGS third party inspection available if required.
Punctual delivery time:
- We put your order into our tight production schedule, ensure your punctual delivery time.
- Production/inspection report before your order packed.
- Shipping notice/insurance to you as soon as your order is shipped.
After sales service:
- We respect your feed back after receive the goods.
- We Provide 12 months warranty after goods arrive.
- We promise all spare parts available in lifetime use.
- We respond your complain within 48 hours.
Professional sales:
- We value every inquiry sent to us, ensure quick competitive offer.
- We cooperate with customer to bid tenders.Provide all necessary document.
- We are a sales team, with all technical support from engineer team.
