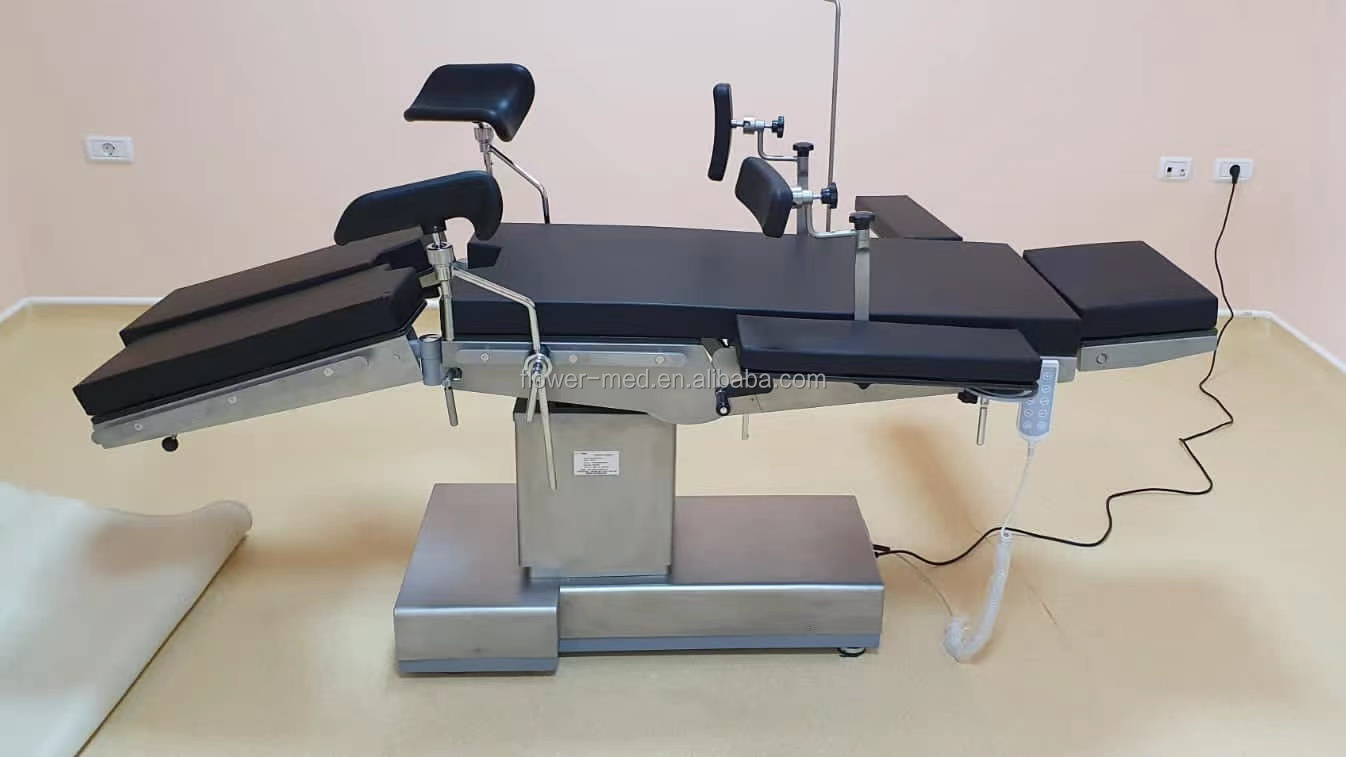

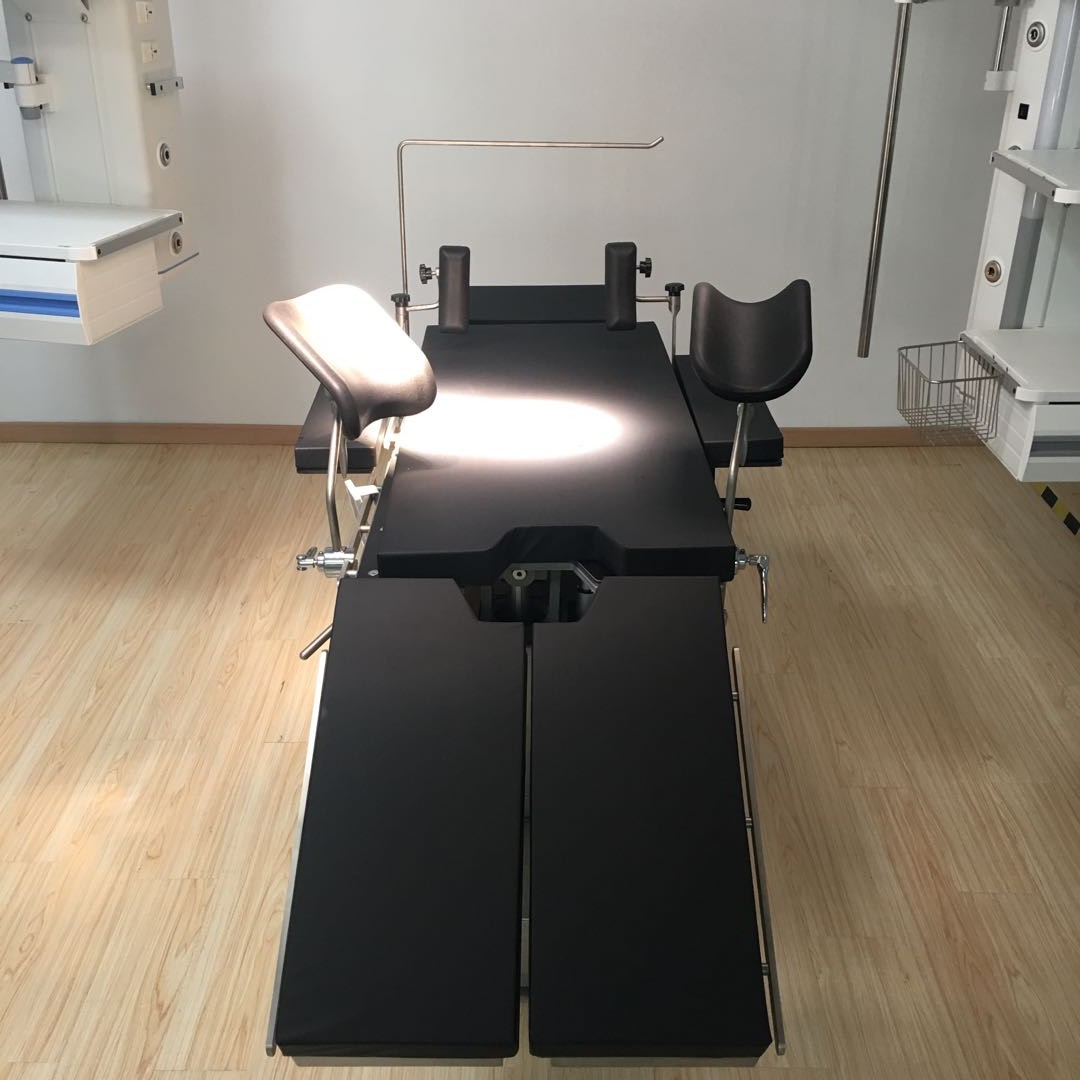

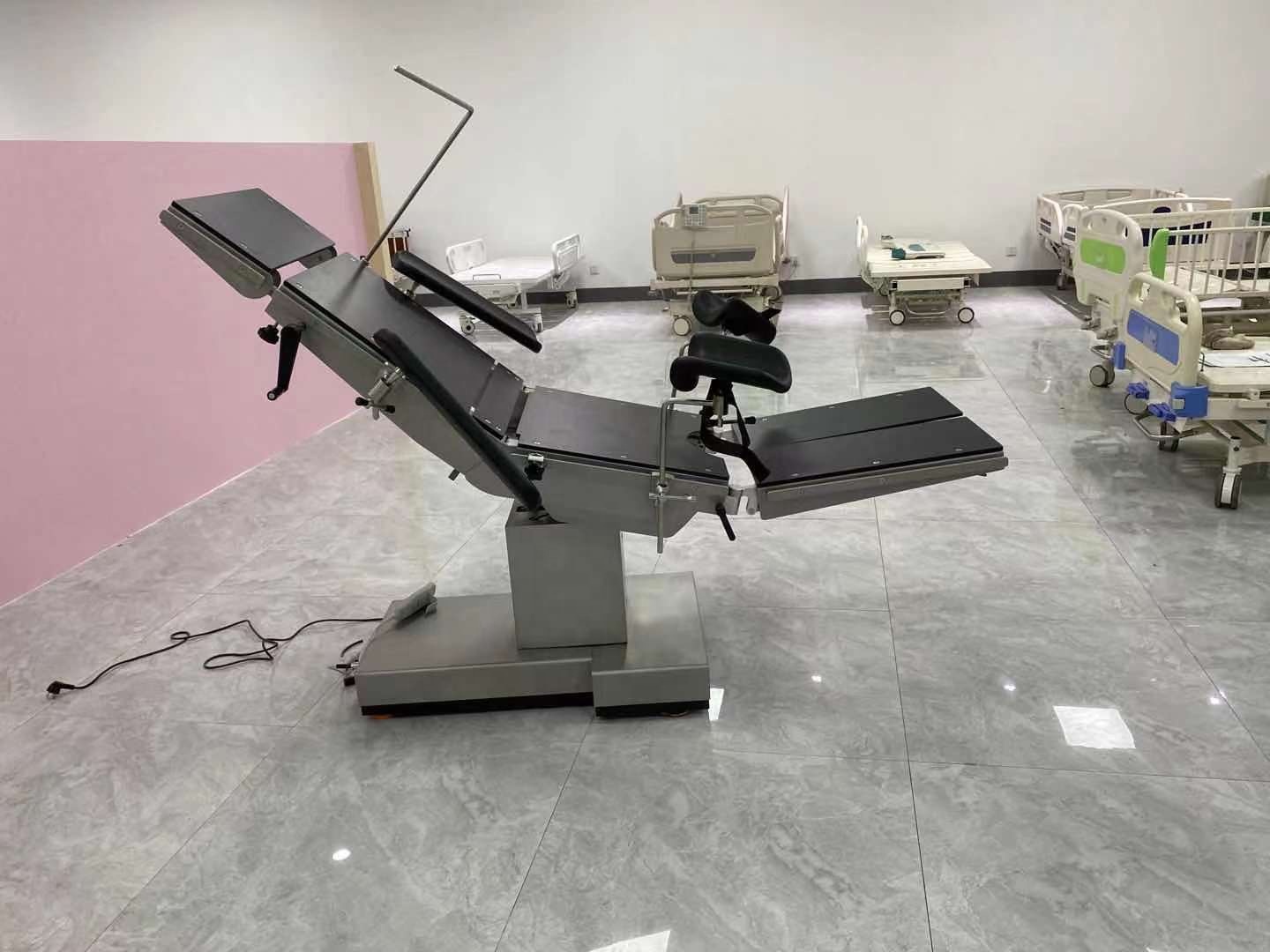

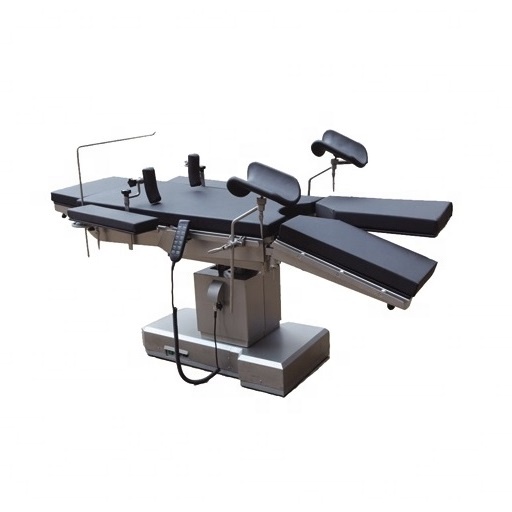

Electric Multi-function Operating Table, Radiolucent Hospital Surgical OT Table

Short Description:

Send email to us

Product Detail

Product Tags

Overview

Essential details

Place of Origin:: Shanghai, China

Brand Name:: Flower Medical

Model Number:: FD-12F

Power Source:: Electric

Warranty:: 1 Year

After-sale Service:: Online technical support

Material:: Metal, Steel

Shelf Life:: 3 years

Quality Certification:: ce

Instrument classification:: Class II

Safety standard:: EN 149 -2001+A1-2009

Name:

Electric Multi-function Operating Table

Length:

2050mm

Width:

520mm

Adjustable range of height:

710~960mm

Trendelenburg:

+25/-25

Lateral Tilt(Left/Right):

+20/- 20

Head plate angle:

+45/-80

Back board folding upward/downward angle:

+75/-15

Leg plate angle:

+90/+90

Kidney bridge elevation:

120mm

Name			Electric Multi-function Operating Table
Model			FD-12F
Length			2050mm
Width			520mm
Adjustable range of height			710~960mm
Reversed Trendelenburg/Trendelenburg			+25˚/-25˚
Lateral Tilt(Left/Right)			+20˚/- 20˚
Head board folding upward/downward angle			+45˚/-80˚
Back board folding upward/downward angle			+75˚/-15˚
Leg board folding downward/abduction angle			+90˚/+90˚
Kidney bridge elevation			120mm
Power supply			220V,50Hz/110V,60Hz
mattress			made of memory foam
Double control system Both handset controller and control panel X-ray examination can be performed during operation by using a fluoroscopic bed board Options:Orthopedic Traction Frame Supply Operations:Suitable for surgical operations for the head,neck,thorax,perineum,abdomen,extremities;gynaecology and obstetrics,urology department, Ent surgery(compatible with X-ray examination)

Send Enquiry Here ~

Lucy(Export Manager) : Mobile/WhatsApp/WeChat:+86 15039025582

Size	16407001000 mm

Weight	G.W.:330 kg

Package Details	Wooden case

Electric Type

FD-IA

FD-I

FD-4

Electric Hydraulic Type

FDY-12D

FDY-2A

FDY-12C

Manual Type

FY-3001

FY-3008D

FY-3008H

Send Enquiry Here ~

Lucy(Export Manager) : Mobile/WhatsApp/WeChat:+86 15039025582

About Us

Our company name is Shanghai Flower Medical Equipment Co.,Ltd . sub company name is Shanghai V-ON Industry Development Co.,Ltd. We are mainly focus on Medical gas pendant, Operating light. Operation Table, Hospital Bed and furniture in Shanghai China . Both companies are established in the year of 2010. Foundation amount is 10,000,000 RMB.
